Small magnetic loop

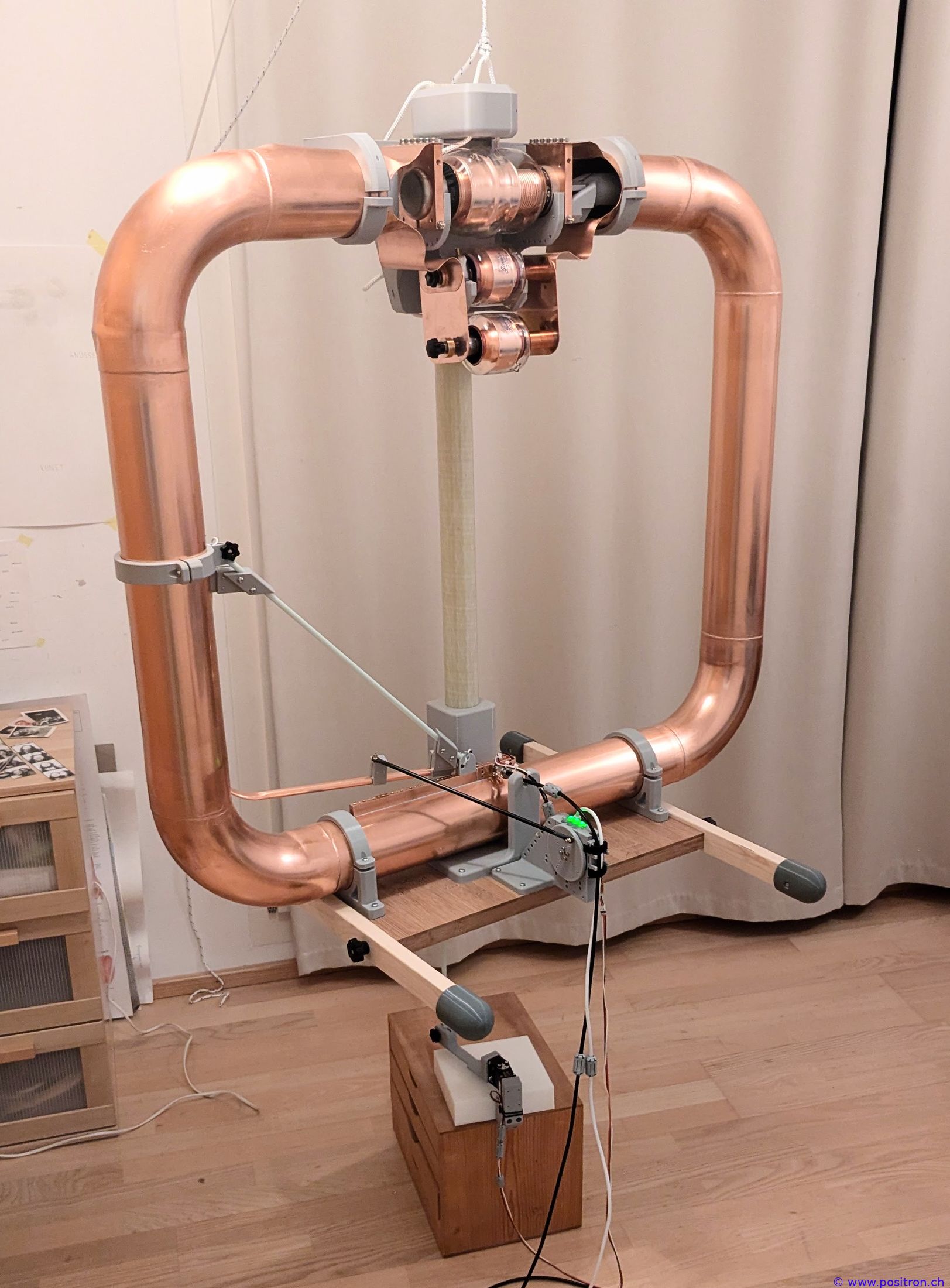

Selfmade small magnetic loop HF antenna:

• 1 m loop diameter
• 100 mm diameter copper tube
• 10 m to 40 m
• 60 m to 160 m by switching in fixed capacitors
• Frequency, impedance matching and azimuth are all adjusted automatically by servo motors.

Further information can be found in a paper.
